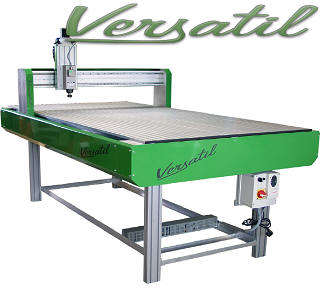

EAS VERSATIL 2500 (8 ft x 4 ft)


Made in Germany

The Basic Machine c/w 3-axis Controller will consist of the items followings:-

a. Precision ball screw drive Dia. 16 x 10mm for
    X/Y/Z axis
b. AC Spindle Motor 1.1kW c/w Frequency
    Converter & Collet Dia.6.0mm
c. NC-EAS(Y) 2.0-Controller/Operating Software
d. CAM Software
e. Slot nut Ė 20pcs

Furthermore, the basic machine can be match
optionally with accessories below:-

a. 2-in-1 Engraving Spindle c/w Attachment Plate
b. Auto Tool Height Sensor
c. Coolant Spraymist
d. Vacuum Pump

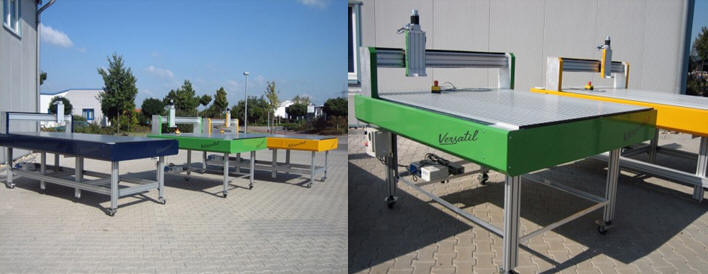

Highlights of the Versatil 2500

Design
The Versatil 2500 is designed for the processing of big work pieces. Itís base frame consists of aluminium extruded profiles. The T-slot workbench allow work pieces to be clamped easily.



  A B C D E F G Traverse path X/Y/Z
Versatil 2500 1630 1440 160 190 920 1600 3200 2500 x 1250 x 170

The side parts of the y- axis are constructed in a specific sandwich design. Itís special design bring a high rigidity and ability to compensate on the vibration. Furthermore, the z-axis is also built with T-groove profile. Through this way, you will be able to get a higher flexibility to assemble different tools. The track of the three axis consists of recirculating ball bearing screw guides that enables precise and effortless traveling. All the axis are powered by effectual stepper motors and ball screws drives. Nevertheless, the x-axis is powered by two ball screws drives. All shafts are secured with assistance guide to protect the revolving. In additionally, the pre-stressed bedding ball screws drives match with the specific ball bearing to ensures a position and repeatability accuracy of +0.02 mm.

Thus, the treatment of wood, plastic, GFK/ CFK, Plexiglas, aluminium, brass, copper, aluminium composite material and so on is not a problem because of its design.

Controller
The Versatil 2500
comes with a 3Ėaxis stepper motor control unit MC 400/C, 4 amp including USB-Controller. The power supply is 230V; 50Hz/60Hz.

Software
The Versatil 2500 is shipped with NC-EAS(Y) 2.0 Controller / Operating Software and CAM 2.0D software as standard. Furthermore, the various import files are in the format of NC (G-Code), NCP (isel-format), HPGL (PLT-format), Autocad (DXF-format), Adobe IIlustrator (ai-format), Postscript (eps-format) and Sieb & Maier (drl-format).


Model

Versatil 2500 (8 ft x 4 ft)

Machine dimensions (mm)

3200 x 1650 x 1620

Machine weight

290 kg

Milling table dimensions (mm)

3200 x 1440

XYZ-axis travels (mm)

2500 x 1250 x 170

Z-Axis head room

170 mm

Milling table type

Aluminium extruded T- groove plate

Travel speed

12 m/min (200mm per sec)

Spindle motor

AC     1.1 kW (With option of 2.2kW & 3.3kW)

Max. 24,000rpm

Power Supply

230V, 50/60Hz

Drive system

16x10mm precision ball screw driven spindles

with linear slide bearing guides

Operating software

NC EAS(Y) 2.0 (realtime software)

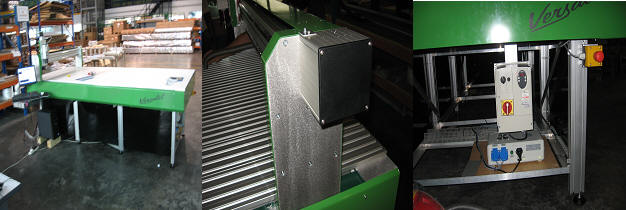

EAS Versatil Machine detail views


EAS Versatil Machine presentable in different colours.

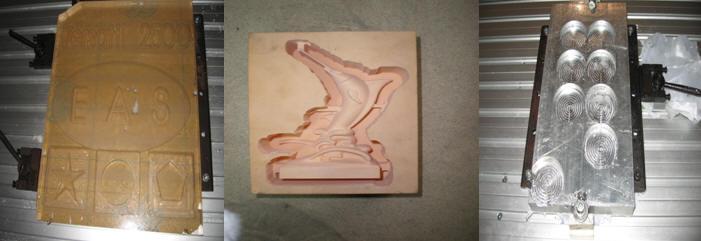

Some of the samples that made by EAS Versatil Machine

Video Impression

Application on Acrylic material


a. Video 1
b. Video 2

Application on Wooden Material


a. Video 1
b. Video 2
c. Video 3
d. Video 4
e. Video 5
f.  Video 6


Application on Aluminium Material

a. Video 1
