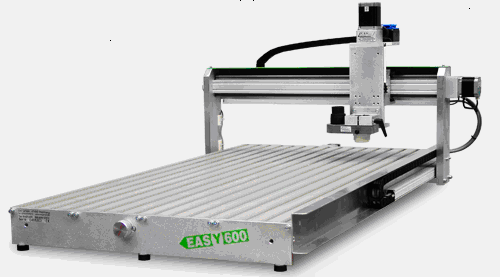

EAS(Y) 600 LBS (4 ft X 2 ft)

Made in Germany
The Basic Machine c/w 3-axis Controller will consist of the items followings:-

a. 3-axis CNC Machine c/w 3-axis controller
b. NC-EAS(Y) 2.0-Controller/Operating Software
c. CAM 2.0D Software
d. DC Spindle Motor 1050W c/w 1 pc of Collet Dia. 6.0mm
e. Auto Tool Height Sensor
f. Slot Nuts – 20pcs
g. Precision Ball Screw drive Dia 16 x 10mm for X/Y/Z axis

Furthermore, the basic machine can be match optionally with accessories below:-
a. Coolant Mist Spray Unit
b. 2-in-1 Engraving Spindle c/w attachment Plate
c. Vacuum Pump

Highlights of EAS(Y) 600 LBS

Design
The EAS(Y) 600 LBS is built with aluminium pattern where it’s base frame is constructed using aluminium extruded profiles. The T-slot workbench allows work pieces to be clamped easily. The portal is powered by precision ball screw drive under the table. The recirculating ball bearing guides enable an easy, smoother and accurate run.

Furthermore, the z-axis also comes with T-slot aluminium extruded profile that enables a high flexibility for the attachment of the tools. All of the axis are powered by effectual stepper motor drive. The shafts are designed and built with cover that enables dust resistance. In addition, the high flexible cables in the cable chain assure a longer life span of the machine.

The treatment of wood, plastic, GFK / CFK, Plexiglas, aluminium, brass, copper, and aluminum composite material and so on are not a problem because of its solid design. Nevertheless, the choices for the handling are multisided: milling, drilling, engraving, cutting, dose, cutting cardboard, leather and 3D mould construction.

Controller
The EAS(Y) 600 LBS comes with a 3–axis stepper motor control unit MC 400/C, 4 amp including USB-Controller. The power supply is 230V, 50Hz.

Software
The EAS(Y) 600 LBS is shipped with NC-EAS(Y) 2.0 Controller / Operating Software and CAM 2.0D software as standard. Furthermore, the various import files are in the format of NC (G-Code), NCP (isel-format), HPGL (PLT-format), Autocad (DXF-format), Adobe IIlustrator (ai-format), Postscript (eps-format) and Sieb & Maier (drl-format).

General Technical Data


Model

EAS(Y) 600 LBS (4 ft x 2 ft)

Machine overall dimensions

1690 x 970 x 800mm

Milling table dimensions

1250 x 600mm

XYZ-axis travels

1250 X 600 X 115mm

Z-Axis head room

115 mm

Milling table type

Aluminium extruded profile T- groove plate

Travel speed

12 m/min (200mm per sec)

Spindle motor

DC    1050 W

Power Supply

 230V, 50Hz

Drive system

16x10mm precision ball screw driven spindles
with linear slide bearing guides

Operating software

NC EAS(Y) 2.0 (realtime software)

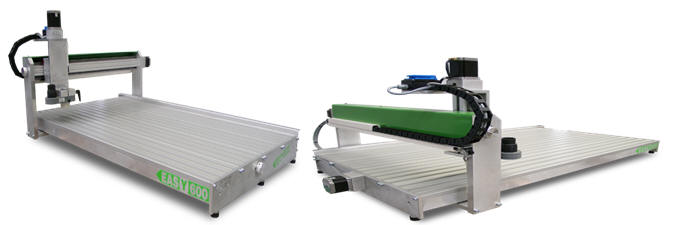

EAS(Y) 600 LBS in different views
