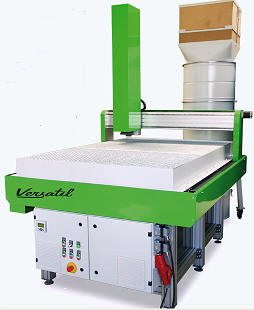

CO2 LASER MACHINE
Made in Germany

Complete system including everything you need to work. A sophisticated system with numerus of innovations. With this LASER SYSTEM , YOU can ENGRAVE and CUT effectively.


Technical Details:
> Different Machine Traverse Path

Model Overall Dimension(mm) Traverse Path(mm)
Laser 2500(4ft x 8ft) 3200 x 1650 x 1620 2500 x 1250 x 170
Laser 1250(4ft x 4ft) 1730 x 1650 x 1620 1250 x 1250 x 170
Laser EAS(Y) HEAVY 600L
(4ft x 2 ft)
1400 x 970 x 800 1250 x 650 x 170

> Laser Head
(From Top Brand Laser Maker USA ~ Coherant)
> CO2 - Laser 30W / 70W / 150W
> Air cooled laser (30 & 70W)
> Water cooled laser (150W)
> Laser tube can be lasting up to 50,000 hours
> Laser-Pointed Adjust
> Dynamic power adjustment (Ingate Drops)
> Data Interface: DIN ISO, PLT, DXF,AI, EPS

The Basic Machine complete with:-
> Strong Work Bench
> Control Cabinet with 3-Axis Controller
& Controller Software
> Laser Head 30W / 70W / 150W
> Water Cooling System for Laser 150W
> Burning Lense With Beam Combiner
> Laser Power Supply 48VDC/63A
> Laser Interface Card For Laser Power
> CAM 2.0D Software from USA

Optional:
> Deduster with Micro-Filter and Carbon Filter
> Safety Housing



Vesatil 2500 600 LBS FLAT BED CNC PURE
