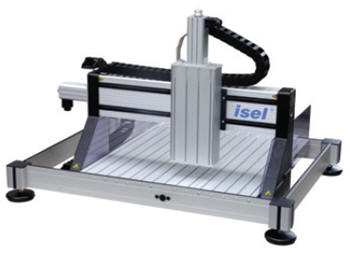

PROMA CNC FLATBED - FB2

Made in Germany
The Basic Machine will consist of the items followings:-

a. 4-axis Stepper Controller with integrated PC w/o monitor
b. EdiTasc Real time Controller/Operating Software
c. AC Spindle Motor 1.1kW c/w Frequency Converter & Collet Dia.6mm
d. CAM Software
e. Stop bar, Length: 175mm - 2pcs
f. Hand Level Clamping Device 2 pcs
-
Furthermore, the basic machine can be match optionally with accessories below:-
a. 2-in-1 Engraving spindle c/w Attachment plate
b. Length Measuring Switch

Highlights of the FB2

Design
The FB2 is a isel X/Y/Z multi axis unit constructed on the basis of a modular system with four axis controller and ball screw drives with a repetition accuracy of +/- 0.01 mm (positioning reproducibility). The linear slide bearing guides provides for a high angle accuracy of the axis.

Drive Control
The FB2
comes with a compact 4-axis ProMa Step 10-4 Stepper controller with Intergrated Win XP PC w/o monitor. Thus, the power electronics is thereby integrated in a housing and is connected to the control computer by the parallel interface. Hence, the positioning control itself is realized by means of the EdiTasc Real time Controller/Operating Software.

Software
The FB2
is by default shipped with a basic version of the EdiTasc Real time Controller/Operating Software
and CAM software. By the way, other optional NC software products like the Isy CAD/CAM 3.0D, ProNC or Galaad can be used by exchanging the positioning control. Furthermore, various import filters e.g. for HPGL data, DXF files or Corel files ensure a universal data exchange.

General Technical Data

Model

FB2 (4 ft x 3 ft)

Machine dimensions

2150 x 1650 x 900mm

Machine weight

54.6 kg

Milling table dimensions

1750 x 1250 mm

XYZ-axis travels

1250 x 1030 x 160mm

Z-Axis head room

160 mm

Milling table type

Aluminium extruded T- groove plate

Travel speed

80 mm/s (4800mm per min)

Spindle motor

AC      1.1kW

Drive system

16x4mm precision ball screw driven spindle with linear slide bearing guides

Controller

4-axis ProMa Step 10-4 Stepper controller with intergrated Win XP PC w/o monitor

Operating software

EdiTasc (realtime software) for the parallel interface

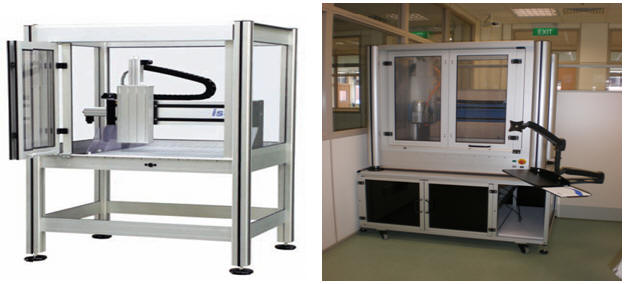

FB2 Machine with Safety Enclosures and Underframe


FB2 Machine with Underframe

The CNC Flatbed-FB2 Units are the ideal basis for the construction of machines for:
► automatic placement and mounting
► printing and engraving
► drilling and milling
► dosing and screwing
► forming and modelling
► glueing and sealing
► soldering and welding
► measuring and cheking
► sawing and cutting


Milling plastics


 Front panel


Architectural model


Advertisement

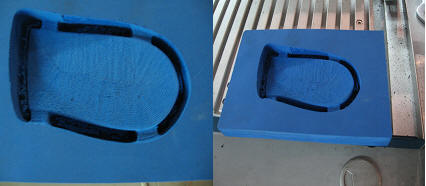

Some of the Insole design that produce by FB2 Machine

Video Impression

1. Video 1

2. Video 2


3. Video 3
Remarks:-

The FB2 units are available in several constructions and different sizes and are characterized by low-friction running high travel speeds. Low weight and high accuracy are achieved by using high quality aluminium components with surfaces, trimmed by milling.

Besides FB2 machine with 1250 x 1030 x 160mm, there are a few types of CNC FLATBED FB2 Machine with different traverse path:-

a. 500 x 530 x 160mm (X/Y/Z)
b. 750 x 530 x 160mm (X/Y/Z)
c. 850 x 780 x 160mm (X/Y/Z)
