PROMA CNC PURE

Made in Germany
CNC PURE known as a gantry machine made of cast, aluminums with slide bearing guides and round thread spindles.

There are 3 types of CNC Pure Machine:-

a. CNC Pure 1
Traverse path : 315 x 420 x 130 mm [X/Y/Z]
b. CNC Pure 2
Traverse path : 315 x 600 x 130 mm [X/Y/Z]
c. CNC Pure 3
Traverse path : 315 x 1025 x 130 mm [X/Y/Z]

The Basic Machine consist of the items followings:-

a. Editasc Controller / Operating Software
b. CAM Software
c. DC Spindle Motor UFM (500W / 1050W) c/w 1 pc of collet Dia.6.0m
d. Hand Level Clamping Device 2pcs
e. Nut strips 2pcs

Furthermore, the basic machine can be match optionally with accessories below:-
a. 2-in-1 Engraving spindle c/w Attachment plate

Highlights of the CNC Pure

Design
CNC Pure is based on a very compact and durable design principle with only a few functional modules. An aluminium cast portal, machined in only one procedure, provides for a high angle accuracy of the axes. In addition to that, the ball bearing drive and linear slide bearing guides guarantee a high reliability and great running smoothness.

Drive Control
CNC Pure comes with a compact three-axis drive control. The power electronics is thereby integrated in housing and is connected to the control computer by the parallel interface. The positioning control itself is realized by means of the EdiTasc realtime software.

Software
CNC Pure
is by default shipped with a basic version of the Controller/Operating software EdiTasc. Other optional NC software products like the isy CAD/CAM 2.5D & 3.0D, ProNC or Galaad can be used by exchanging the positioning control. Furthermore, various import filters in format of *.plt (hpgl files), *.nc (DIN66025), *.ncp (zwichen), *.t (mtasc), *.epj (editasc-project) ensure an universal data exchange.

General Technical Data

Model

CNC Pure 1

CNC Pure 2

CNC Pure 3

Machine dimensions

700 x 650 x 550 mm

700 x 950 x 550 mm

700 x 1300 x 550 mm

Machine weight

28.2 kg

41.4 kg

54.6 kg

Milling table dimensions

375 x 400 mm

375 x 600 mm

375 x 1000 mm

XYZ-axis travels

315mm x 420mm x 130mm

315mm x 600mm x 130mm

315mm x 1025mm x 130mm

Z-Axis head room

150 mm

Milling table type

Aluminium extruded T- groove plate

Travel speed

20 mm/s (1200mm per min)

Spindle motor

500W (With option to change to higher power) Max. 24,000rpm

Drive system

16x4mm precision ball screw driven spindles with linear slide bearing guides

Stepper motor power

3x30V, 2A

Operating software

EdiTasc (realtime software) for the parallel interface

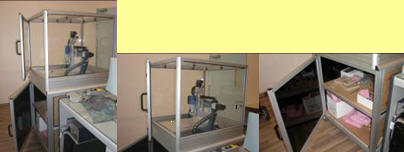

CNC PURE Machine with safety enclosure


CNC PURE Machine with safety enclosure and under frame

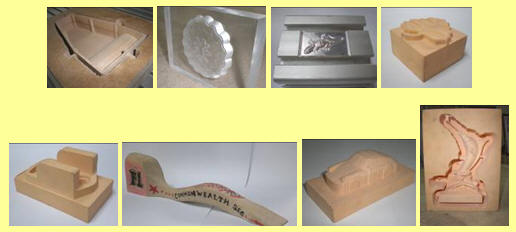

With CNC PURE, the variety of the things and designs that you can do

  and many more

Video Impression

Application on wooden material

a. video 1
b. video 2
