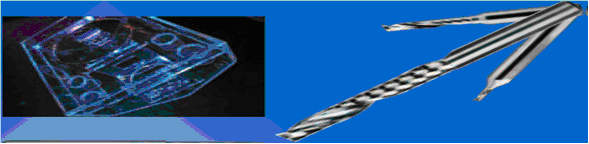

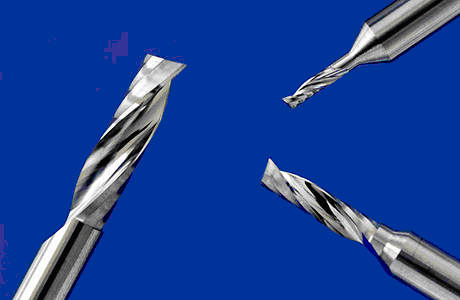

“Acrylic” 1-fluted
router bits, razor sharp, polished for acrylic, plastics, wood
|
S/No. |
Art.
Nr. UP-CUT |
Cutting
diameter (d) |
Shank
Diameter (D) |
Length
of cut (l) |
Total
length (L) |
|
1 |
S1-1,0/3-4-30 A |
1.0 |
3 |
4 |
30 |
|
2 |
S1-1,5/3-6-30 A |
1.5 |
3 |
6 |
30 |
|
3 |
S1-2,0/3-6-30 A |
2.0 |
3 |
6 |
30 |
|
4 |
S1-2,0/3-8-30 A |
2.0 |
3 |
8 |
30 |
|
5 |
S1-2,0/3-11-38 A |
2.0 |
3 |
11 |
38 |
|
6 |
S1-2,5/3-6-30 A |
2.5 |
3 |
6 |
30 |
|
7 |
S1-2,5/3-11-38 A |
2.5 |
3 |
11 |
38 |
|
8 |
S1-3,0/3-6-30 A |
3.0 |
3 |
6 |
30 |
|
9 |
S1-3,0/3-11-38 A |
3.0 |
3 |
11 |
38 |
|
10 |
S1-3,0/3-22-50 A |
3.0 |
3 |
22 |
50 |
|
11 |
S1-2,0/6-6-50 A |
2.0 |
6 |
6 |
50 |
|
12 |
S1-3,0/6-6-50 A |
3.0 |
6 |
6 |
50 |
|
13 |
S1-3,0/6-11-50 A |
3.0 |
6 |
11 |
50 |
|
14 |
S1-4,0/6-8-50 A |
4.0 |
6 |
8 |
50 |
|
15 |
S1-4,0/6-12-50 A |
4.0 |
6 |
12 |
50 |
|
16 |
S1-4,0/6-14-50 A |
4.0 |
6 |
14 |
50 |
|
17 |
S1-4,0/6-22-50 A |
4.0 |
6 |
22 |
50 |
|
18 |
S1-5,0/6-12-50 A |
5.0 |
6 |
12 |
50 |
|
19 |
S1-5,0/6-16-50 A |
5.0 |
6 |
16 |
50 |
|
20 |
S1-5,0/6-22-50 A |
5.0 |
6 |
22 |
50 |
|
21 |
S1-6,0/6-12-50 A |
6.0 |
6 |
12 |
50 |
|
22 |
S1-6,0/6-22-50 A |
6.0 |
6 |
22 |
50 |
|
23 |
S1-6,0/6-22-58 A |
6.0 |
6 |
22 |
58 |
|
24 |
S1-6,0/6-32-64 A |
6.0 |
6 |
32 |
64 |
|
25 |
S1-6,0/6-32-100 A |
6.0 |
6 |
32 |
100 |
|
26 |
S1-6,0/6-42-76 A |
6.0 |
6 |
42 |
76 |
1-
fluted spiral router bits
“Multi-purpose”
for aluminium, ACM, brass, plastics, wood /MDF
|
S/No. |
Art.
Nr. UP-CUT |
Cutting
diameter (d) |
Shank
Diameter (D) |
Length
of cut (l) |
Total
length (L) |
|
1 |
S1-1,0/3-4-38 MP |
1.0 |
3 |
4 |
38 |
|
2 |
S1-1,5/3-6-38 MP |
1.5 |
3 |
6 |
38 |
|
3 |
S1-2,0/3-6-38 MP |
2.0 |
3 |
6 |
38 |
|
4 |
S1-2,5/3-6-38 MP |
2.5 |
3 |
6 |
38 |
|
5 |
S1-3,0/3-6-38 MP |
3.0 |
3 |
6 |
38 |
|
6 |
S1-3,0/3-11-38 MP |
3.0 |
3 |
11 |
38 |
|
7 |
S1-2,0/6-6-50 MP |
2.0 |
6 |
6 |
50 |
|
8 |
S1-2,5/6-6-50 MP |
2.5 |
6 |
6 |
50 |
|
9 |
S1-3,0/6-6-50 MP |
3.0 |
6 |
6 |
50 |
|
10 |
S1-3,0/6-11-50 MP |
3.0 |
6 |
11 |
50 |
|
11 |
S1-3,5/6-12-50 MP |
3.5 |
6 |
12 |
50 |
|
12 |
S1-4,0/6-6-50 MP |
4.0 |
6 |
6 |
50 |
|
13 |
S1-4,0/6-12-50 MP |
4.0 |
6 |
12 |
50 |
|
14 |
S1-4,0/6-14-50 MP |
4.0 |
6 |
14 |
50 |
|
15 |
S1-4,0/6-22-50 MP |
4.0 |
6 |
22 |
50 |
|
16 |
S1-5,0/6-12-50 MP |
5.0 |
6 |
12 |
50 |
|
17 |
S1-5,0/6-16-50 MP |
5.0 |
6 |
16 |
50 |
|
18 |
S1-5,0/6-22-50 MP |
5.0 |
6 |
22 |
50 |
|
19 |
S1-6,0/6-12-50 MP |
6.0 |
6 |
12 |
50 |
|
20 |
S1-6,0/6-22-50 MP |
6.0 |
6 |
22 |
50 |
|
21 |
S1-6,0/6-22-58 MP |
6.0 |
6 |
22 |
58 |
|
22 |
S1-6,0/6-32-64 MP |
6.0 |
6 |
32 |
64 |
|
23 |
S1-6,0/6-32-100 MP |
6.0 |
6 |
32 |
100 |
| The 1-fluted router bits
from Crown Norge (Made in Norway) work perfectly with our CNC
Router Machine (Made in Germany) in the application on Acrylic
material, aluminium, stainless steel, plastic, brass, and wood. |

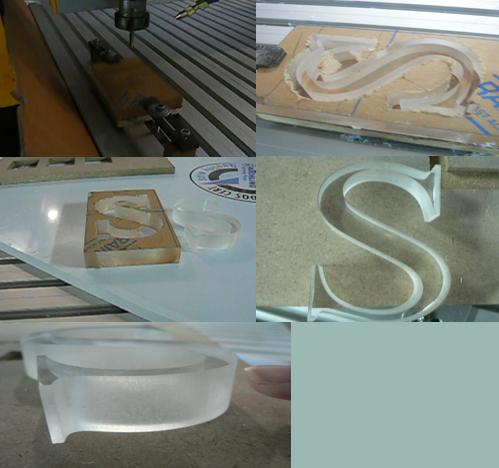

Application on Acrylic Material
The superior quality of cutting effect will be produce by
1-fluted router bits from Crown Norge (Made in Norway).So, there
is not much touch up work needed.

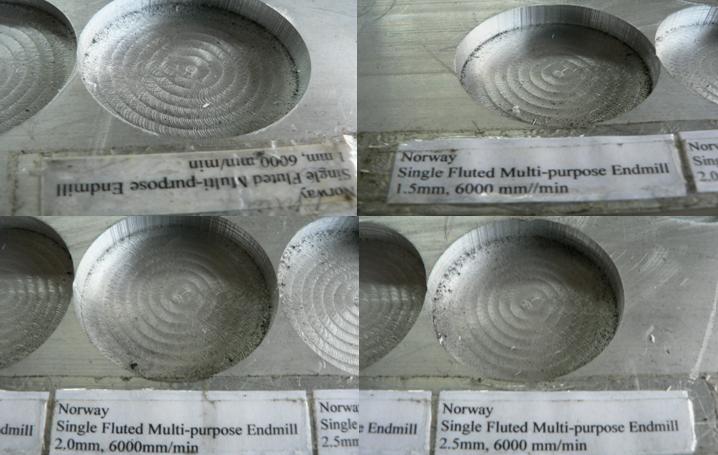

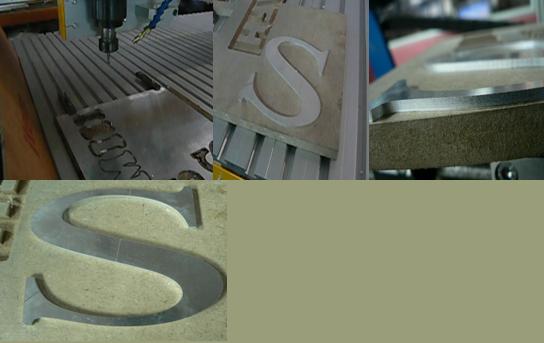

Application on Aluminium Material
 |
Video Impression
a. Video 1
Video Impression
b. Video 1

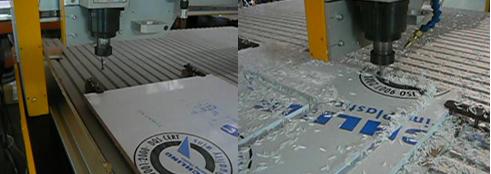

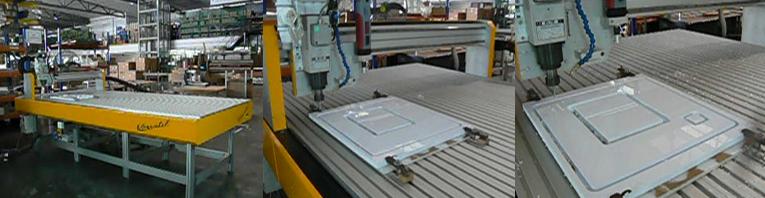

Application on Plastic Material
Video Impression
a. Video 1
b. Video 2
c. Video 3
d. Video 4
e. Video 5

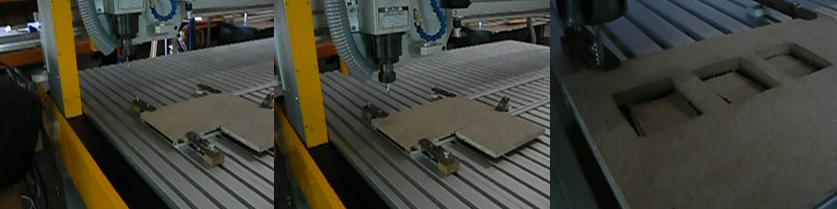

Application on Wooden Material
 |
 |
For more information, please visit
Crown Norge official website. |
