Hand lever clamping device used for hold and clamp work
piece on the machine table.
There are different types of hand level clamping device that useful for
clamping work piece in different CNC Machines.
1. “Isel” Hand Level Clamping Device
Hand Level Clamping Device hold and clamp material with thickness from 1
mm (SH1) or thickness from 10 mm (SH2) to the surface with T-groove
indentation for M6 screws or M6 threads.

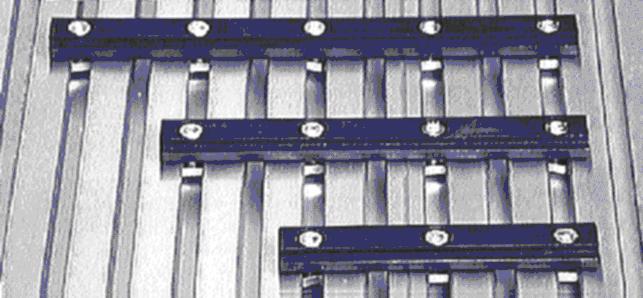

Stop bars in different lengths functions as stopper
for clamp work piece with hand lever clamping device.
Meanwhile, clamping blocks used for mounting work piece with M6 screws
Clamping Blocks
Clamp Material – Nut Strips
2. “EAS” Toggle Clamping Device

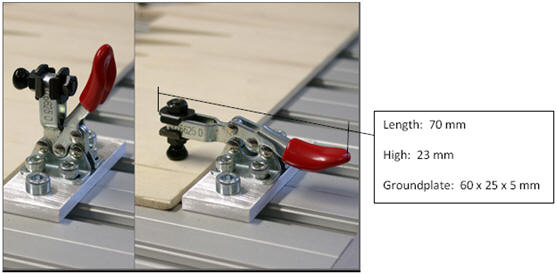

There are two installation sizes:
a. Length: 70mm

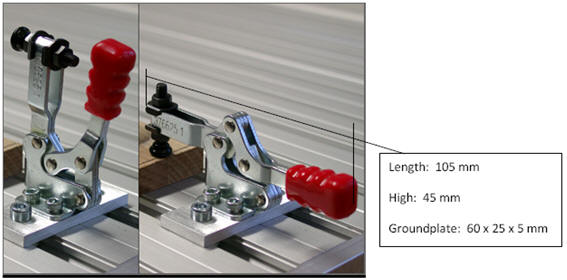

b. Length: 105mm
The Toggle Clamping Device set will complete
with 4 pieces clamping device, each with ground plate, two slot nuts M5
and two screws M5.
Screw Threads
There have different types of screw threads:-
a. M3
b. M4
c. M5
d. M6
Slot Nuts
By using this slot nuts you can fasten and fixing all pieces on the
table
