"ISEL" AC SPINDLE MOTOR |
The main spindle drives are constructed for drilling
and milling for different materials like wood, plastic andnon-ferrous
metal.
Hence, the main spindle drives itself are powerful asynchronous motors
that come with:-
1. Frequency Converter
2. connecting line converter-motor
3. hook spanner
4. wrench
5. collets
Additionally, the Frequency Converter is used to control the machine
speed.
Furthermore, the “ISEL” AC Spindle motors have different output power as
at below:-
a.400W
b.500W
c.1000W
d.1100W |

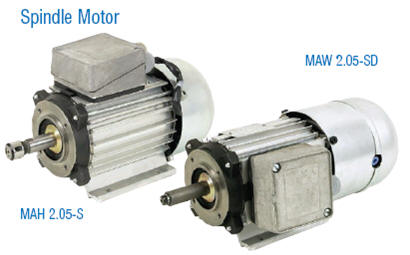

“ISEL” AC SPINDLE MOTOR 500W
Standard features:-
1. Nominal power output 500W
2. Speed range 300-24,000 rpm
3. nominal torque 0.26Nm
4. Tool changing manually with collets (MAH 2.05-S) and/or directly with
pneumatic lifting cylinder(MAW 2.05-SD)
Technical data / Specifications |
|
Type
|
rated power
[kW] |
range of speeds
[min-1] |
rated speed
[min-1] |
rated voltage
[V] |
Number of poles
|
weight[kg] |
|
MAH 2.05-S |
0.5 |
300-24000 |
18000 |
3 x 210 |
2.0 |
4.0 |
|
MAW 2.05-SD |
0.5 |
300-24000 |
18000 |
3 x 210 |
2.0 |
4.0 |
|

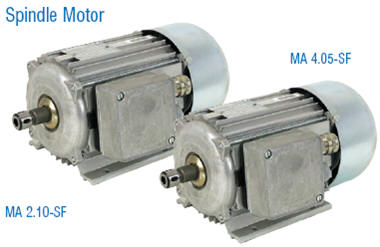

“ISEL” AC SPINDLE MOTOR 1000W / 400W
Standard features:-
1. Nominal power output 1000 / 400W
2. Speed range 300-24,000 rpm / 200-6000rpm
3. Nominal torque 1.5 / 3.0 Nm
4. Tool changing manually with collets
Technical data / Specifications
|
Type
|
rated power
[kW] |
range of
speeds
[min-1] |
rated speed
[min-1] |
rated voltage
[V] |
Number of
poles
|
weight[kg] |
|
MA 2.10-S |
1.00 |
300-24000 |
4500 |
3 x 200 |
2.0 |
5.8 |
|
MA 4.05-S |
0.40 |
200-6000 |
1270 |
3 x 210 |
4.0 |
5.8 |
|
|
|
|

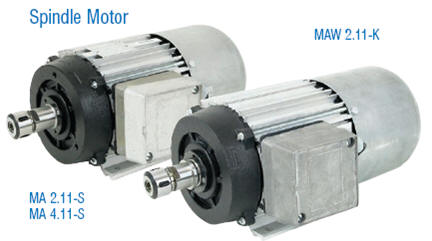

“ISEL” AC SPINDLE MOTOR 1100W |
Features:-
1. Nominal power output 1100W
2. Speed range 300-15,000rpm / 200-7,500rpm
3. Nominal torque 2.8 / 8.0 Nm
4. Tool changing manually with collets (MA2.11-S,MA4.11-S) and / or
automatically (MAW2.11-K)
Technical data / Specifications
|
Type
|
rated power
[kW] |
range of
speeds
[min-1] |
rated speed
[min-1] |
rated voltage
[V] |
Number of
poles
|
weight[kg] |
|
MA 2.11-S |
1.1 |
300-15000 |
4200 |
3 x 210 |
2.0 |
11 |
|
MA 4.11-S |
1.1 |
200-7500 |
2250 |
3 x 210 |
4.0 |
11 |
|
MAW 2.11-K |
1.1 |
300-15000 |
4200 |
3 x 210 |
2.0 |
11 |
|
|
