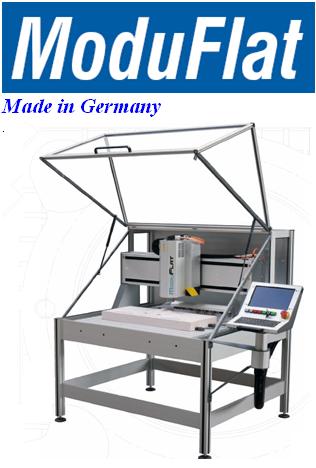

CNC ModuFlat Machine 30//60/70/120

Made in Germany
The Basic Machine consist of the items followings:-
a. Stepper motor control unit iMC-P with controller/operating software Remote -Win
b. DC Spindle motor 1050W c/w 1pc of collet
c. Hand Level Clamping Device - Fixture SH1 2 units
d. Nut Stripe (Length - 125mm) (2 pcs) 1 set
e. Length Measuring Switch (Height Checker)
f. CAM Software-2.0 D (Imported from USA)
OPTION:
2-IN-1 ENGRAVING SET
2-IN-1 ENGRAVING SET
Suitable for engraving on thin material or uneven surface
- 2-In-1 Engraving Spindle c/w Attachment Plate
- With option of 3mm, 6mm, or 11/64 Top Load Engraving
Spindle from USA




Highlights of the Moduflat Machine Series

Design

ModuFlat CNC machines are machines for various lines of business and fields of application with a good value for the money. We are able to provide complete solutions for proportioning, engraving, measuring, drilling and milling applications.

The basis is made of rigid steel and aluminium constructions of isel system profiles and elements. The play-free ball screw drives, used in the positioning axes, provide for high precision, accuracy and smooth running.

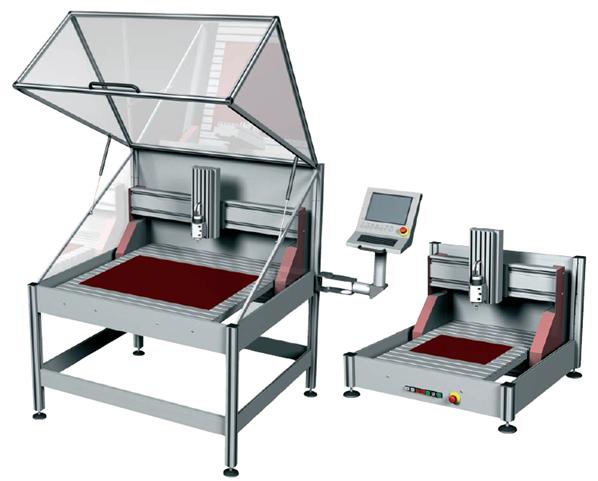

ModuFlat CNC machines are available as compact units in 4 standard sizes with traverse paths of

X = 400 / 800 mm
Y = 300 / 600 / 1200 mm,
Z = 150 mm

in open and closed design as well as with and without protective cover . The linear units with stepper motors are optimally matched to the mechanics, the power electronics and the controller together with
the software.

The 4-Axis-Stepper Controller have available a maximum step precision and is controllable about USB, RS232 as well as Parallel Port.

In case of the ModuFlat the portal section is being moved and the workpiece is being moved within the table area. This design makes the machines particu suitable for machine cutting up to four axis.

The basic configuration of the ModuFlat contains the CNC standard machine without base and protective cover as well as a handing control element with function keys and Emergency
OFF.(optional Control terminal)

A wide range of functional application accessories and software applications as well as versions with other feed ranges are available for all CNC desktop machines

General Technical Data:

Model

ModuFlat 30

ModuFlat 60

ModuFlat 70

ModuFlat 120

XYZ-axis travels (mm)

400 x 300 x 150



400 x 600 x 150



800 x 600 x 150



800 x 1200 x 150



Milling table dimensions (mm)

550 x 750



550 x 1000



950 x 1000



950 x 1750



Overall Dimension (mm)

850x1020x900



850x1300x900



1250x1300x900



1250x2050x900



Opening (mm)

200 mm

Milling table type

Aluminium extruded Profile T- groove plate

Travel speed

50/100 (mm/s)

Repeat Accuracy (mm)

0.02 mm

Spindle motor

DC Spindle motor 1050W

Power Supply

Power supply 500W, 4 final stages 48V/4,2A

Operating software

controller/operating software Remote -Win
