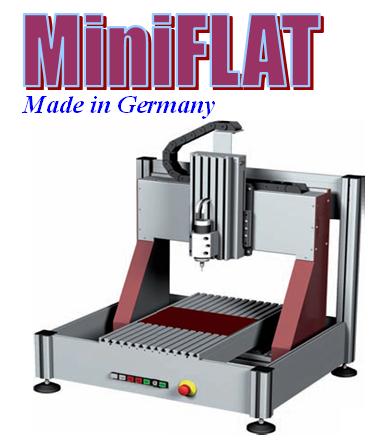

CNC miniFlat Machine 40/80/100

Made in Germany
The Basic Machine consist of the items followings:-
a. Stepper motor control unit iMC-P with controller/operating software Remote -Win
b. DC Spindle motor 1050W c/w 1pc of collet
c. Hand Level Clamping Device - Fixture SH1 2 units
d. Nut Stripe (Length - 125mm) (2 pcs) 1 set
e. Length Measuring Switch (Height Checker)
f. CAM Software-2.0 D (Imported from USA)
OPTION:
2-IN-1 ENGRAVING SET
Suitable for engraving on thin material or uneven surface
- 2-In-1 Engraving Spindle c/w Attachment Plate
- With option of 3mm, 6mm, or 11/64 Top Load Engraving
Spindle from USA


Highlights of the Miniflat Machine Series

Design
MiniFlat CNC machines are machines for various lines of business and fields of application with a good value for the money. We are able to provide complete solutions for proportioning, engraving, measuring, drilling and milling applications.

The basis is made of rigid steel and aluminium constructions of isel system profiles and elements. The play-free ball screw drives, used in the positioning axes, provide for high precision, accuracy and smooth running.

MiniFlat CNC machines are available as compact units in 4 standard sizes with traverse paths of

X = 300 mm,
Y = 400 / 800 / 1000 mm,
Z = 150 mm

in open and closed design as well as with and without base frame.The linear units with stepper motors are optimally matched to the mechanics, the power electronics and the controller together with
the software.

The Controller with Industry-PC iPC 10 is located at the back of the MiniFlat . The function keys and the emergency OFF are standard affixed at a hand control element. Optionally a CNC control terminal with a 10"-monitor and touch screen can be integrated.

In case of the MiniFlat the portal section is being moved about the fixed table in X/Y-bearing. This design makes the machines suitable for machine cutting up to four axis. A wide range of functional application accessories and software applications as well as versions with other feed ranges are available for all CNC desktop machines.

General Technical Data:

Model

MiniFLAT P20

MiniFLAT P40

MiniFLAT P80

MiniFLAT P100

XYZ-axis travels (mm)

300 x 200 x 150



300 x 400 x 150



300 x 800 x 150



300 x 1000 x 150



Machine weight

70 kg

86 kg

88 kg

94 kg

Milling table dimensions (mm)

325 x 600



325 x 800



325 x 1200



325 x 1400



Overall Dimension (mm)

750 x 630 x 700



750 x 830 x 700



750 x 1230 x 700



750 x 1430 x 700



Opening (mm)

200 mm

Milling table type

Aluminium extruded Profile T- groove plate

Travel speed

50/100 (mm/s)

Repeat Accuracy (mm)

0.02 mm

Spindle motor

DC Spindle motor 1050W

Power Supply

Power supply 500W, 4 final stages 48V/4,2A

Operating software

controller/operating software Remote -Win



Vesatil 2500 600 LBS FLAT BED CNC PURE
